Fertilizer Spreader PTO Gearbox Overview

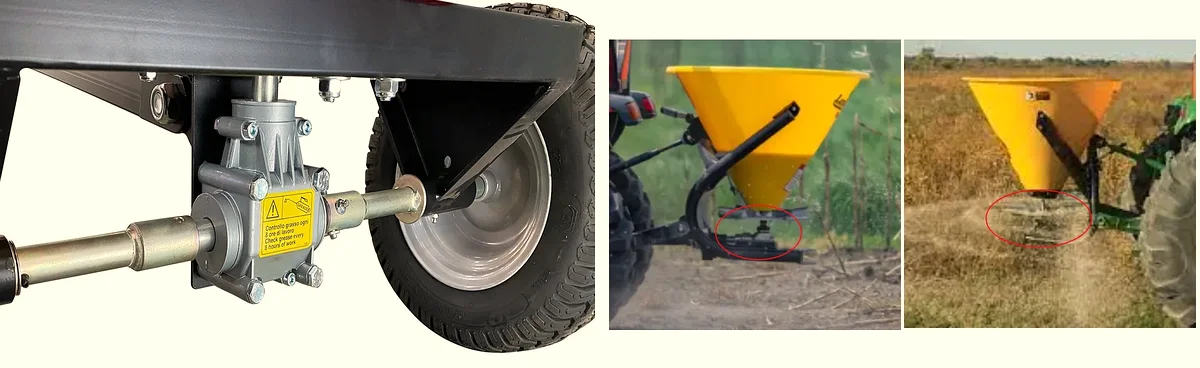

The L-25J is a lightweight aluminium-housed PTO şanzımanı engineered for fertilizer broadcasting equipment, band saw drives, and small mower applications. This tarımsal PTO dişli kutusu delivers a 1:1.9 speed-increasing ratio (or 1.9:1 in reducing mode), converting the 540 RPM PTO input into the higher shaft speeds that spreader discs and distributor mechanisms require for even material dispersal. Maximum output torque reaches 22.7 daNm, and the increasing configuration handles up to 11 kW (15 HP) of input power — well-matched to the 20-40 HP compact tractors widely used on Korean vegetable farms, greenhouses, and orchard operations.

Bu PTO şanzıman değişimi is manufactured as a direct dimensional match for the Comer Industries L-25J. Every critical interface — input spline (1 3/8-inch, 6-spline Type A), output shaft (22 mm Type D), and housing mounting face — mirrors the original design. The aluminium housing holds total weight to just 4.1 kg, a practical advantage on smaller tractors where implement weight affects three-point hitch balance and fuel consumption. The gearbox ships dry, giving operators flexibility to choose their preferred 80W-90 lubricant and fill the 0.35 L reservoir before first use.

Korea Ever-Power PTO Shaft Co., Ltd produces this gearbox under ISO 9001-certified quality controls with individual bench testing for gear noise, seal integrity, and dimensional accuracy. Our Korea-based logistics delivers within 2-4 business days nationwide, with same-day dispatch on orders confirmed before 2 PM KST.

Teknik Özellikler

The table below lists verified performance parameters for this traktör PTO şanzımanı. All torque and power figures correspond to standard 540 RPM PTO input. The aluminium housing provides natural corrosion resistance — important when handling chemical fertilizer materials — combined with adequate structural rigidity for this power class.

Replace oil after the first 50 operating hours. Regular changes every 500 hours thereafter.

Structure and Material Engineering

Housing and Sealing Design

The L-25J uses a two-piece aluminium alloy housing that splits along the gear plane, secured by precision-machined mating faces and high-strength cap screws. Aluminium was selected for this PTO şanzımanı application class because fertilizer spreading equipment benefits from low weight (reducing hitch load on sub-30 HP tractors) and natural corrosion resistance when exposed to chemical dust and moisture. The housing walls maintain concentricity within tight tolerances to keep gear mesh geometry consistent across the full service life of the unit.

Gear and Bearing Assembly

Inside, a pair of spiral bevel gears transfers power through a 90-degree turn. Gear teeth are precision-ground after heat treatment, producing a surface finish that supports a stable oil film at the contact zone. Taper roller bearings on both shafts absorb the combined radial and axial loads from the bevel mesh. The input shaft seal uses a double-lip nitrile rubber design rated for the temperature swings common in outdoor agricultural work. The output seal includes an additional dust lip to keep abrasive fertilizer particles out of the bearing cavity. A magnetic drain plug captures ferrous wear particles, serving as a visual indicator of internal wear at each oil change.

PTO Gearbox Selection Guide for Spreader Equipment

Selecting the right gearbox for fertilizer spreading equipment requires matching several parameters. Follow this checklist to confirm the L-25J is the correct fit:

• ◆Confirm PTO speed. The L-25J is designed for 540 RPM input. Verify your tractor setting — using 1000 RPM will exceed the torque limits.
• ◆Verify input shaft spline. This unit accepts a 1 3/8-inch, 6-spline (Type A) PTO shaft. If your tractor uses a 1 3/4-inch, 20-spline output, you need an adapter or a different model.
• ◆Check output shaft diameter. The 22 mm cylindrical shaft (Type D) must match your spreader's input bore. Even a 1-2 mm mismatch prevents proper coupling.
• ◆Match the gear ratio. At 1:1.9 the output spins roughly 1,026 RPM from 540 RPM input. If your spreader needs a different speed, check other models in our PTO gearbox range.
• ◆Confirm power requirements. This gearbox handles up to 11 kW (15 HP) in increasing mode. Add a 15-20% safety margin to your actual draw.
• ◆Check mounting orientation. The 90-degree shaft layout must align with your PTO shaft without excessive universal joint angle.

Comparison: Ever-Power L-25J vs. Original Equipment

Side-by-side specifications to help evaluate this PTO gearbox for sale against the original unit:

Yasal Uyarı: Yukarıda belirtilen marka isimleri, müşterilerin uyumlu yedek parçaları belirlemelerine yardımcı olmak amacıyla yalnızca çapraz referans olarak kullanılmıştır. Korea Ever-Power PTO Shaft Co., Ltd. sahte ürün satmaz veya üretmez ve bu karşılaştırma, referans verilen markalarla herhangi bir bağlantı veya onay anlamına gelmez.

Sıkça Sorulan Sorular

Müşteri Yorumları

Neden Korea Ever-Power'ı Seçmelisiniz?

• ★Over 20 years manufacturing and exporting agricultural transmission components across Asia, Europe, and the Americas.
• ★ISO 9001-certified production with dedicated testing for every gearbox unit before dispatch.
• ★Kore merkezli depo — Kore Standart Saati (KST) ile saat 14:00'ten önce verilen siparişler aynı gün kargoya verilir, ülke genelinde teslimat 2-4 iş günü sürer.
• ★400+ PTO şanzımanı Comer, Bondioli Pavesi, Omni Gear ve diğer OEM yedek parçalarını kapsayan modeller.
• ★Technical support team for cross-referencing, shaft verification, and selection guidance.
• ★Factory-direct pricing — 30-50% below European OEM parts — with volume discounts for cooperatives and dealers.
• ★12-month warranty backed by local after-sales service. Full PTO şaftı Ve tarımsal şanzıman catalogue available.
