Jordbrukssprutas kraftuttagsväxellåda | ersättning för Comer D-7A och D-7B

Sprayer PTO Gearbox Overview

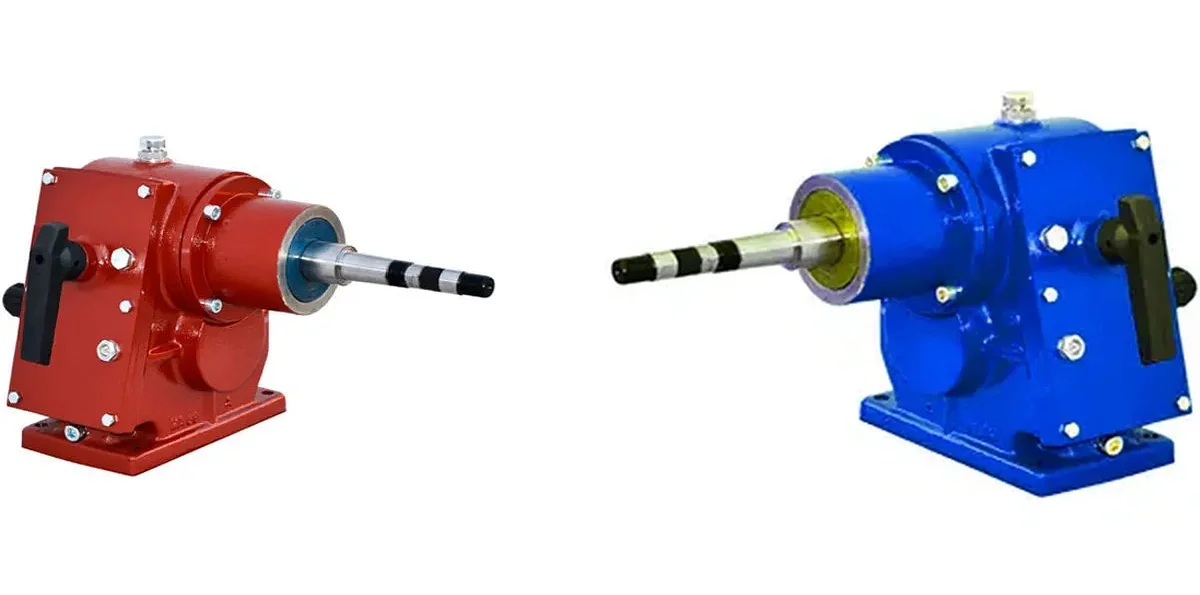

The D-7 series agricultural sprayer PTO gearbox is a high-ratio speed increaser designed to convert the tractor's 540 RPM PTO output into the 2,000-3,000+ RPM shaft speeds that centrifugal and diaphragm sprayer pumps require. Two Kraftuttagsväxellåda models cover the range: the D-7A provides a 5.82:1 increase ratio with 16.2 kW (approximately 22 HP) input capacity and 48 Nm output torque, while the D-7B offers a 4.36:1 ratio with a higher 21.3 kW (29 HP) input and 84 Nm output torque. Both share the same housing, mounting dimensions, and shaft specifications — the difference lies in the internal gear set of this Kraftuttagsväxellåda.

Detta Byte av kraftuttagsväxellåda is manufactured as a direct dimensional match for the Comer Industries D-7A and D-7B models. The input shaft accepts a standard 1 3/8-inch, 6-spline (Z6) PTO coupling, and the output side features a 35 mm shaft. The compact aluminium and cast iron construction keeps the unit light enough for mounting directly on sprayer frames without added support brackets. Both Kraftuttagsväxellåda models ship dry.

Tekniska specifikationer

Both models share the same housing and shaft dimensions but differ in gear ratio and power capacity. Select the model that matches your sprayer pump's speed and torque requirements.

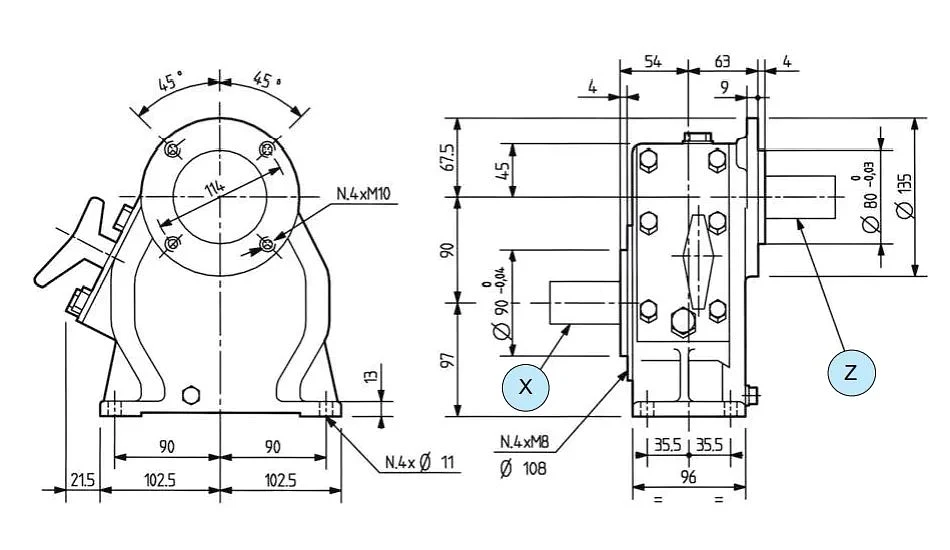

D-7A Specifications

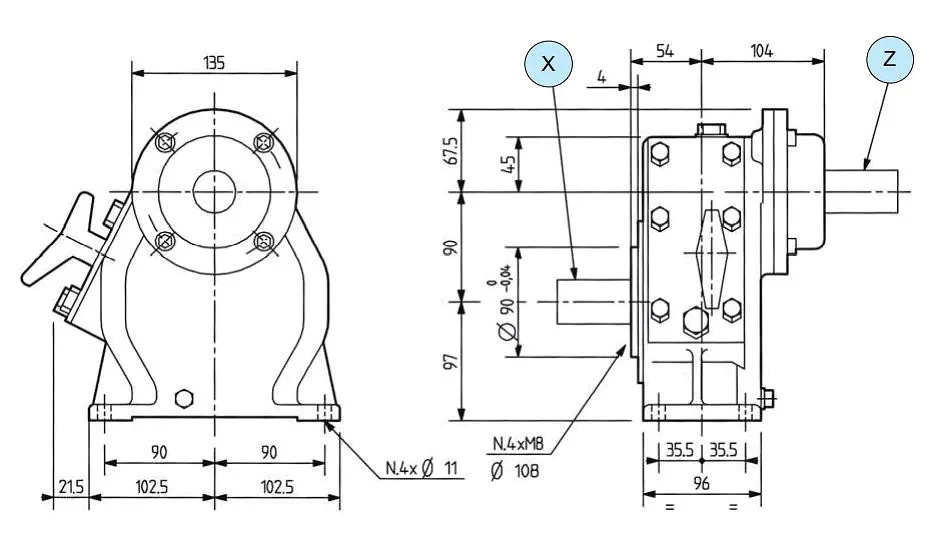

D-7B Specifications

How This Speed Increaser Gearbox Works

Unlike most jordbruks-PTO-växellåda units that operate near 1:1 through 1:3 ratios, the D-7 series is a true high-ratio speed increaser. The tractor PTO delivers 540 RPM to the gearbox input shaft. Inside, a multi-stage gear arrangement — using a combination of bevel and spur gears — steps up the rotational speed by a factor of 4.36 (D-7B) or 5.82 (D-7A). The output shaft then spins at approximately 2,354 RPM or 3,143 RPM respectively, which falls within the operating range of most PTO-driven centrifugal sprayer pumps.

The trade-off with speed multiplication is torque reduction — the output torque is proportionally lower than the input torque. This is acceptable for sprayer pump applications because centrifugal pumps require high rotational speed but relatively low shaft torque. The D-7A, with its higher 5.82:1 ratio, outputs 48 Nm — suitable for smaller pumps on 600-1,000 litre sprayers. The D-7B, at 4.36:1, delivers 84 Nm — enough for larger pump models on 1,500-3,000 litre sprayer tanks used in commercial orchards and broadacre crop protection.

Applikationsscenarier

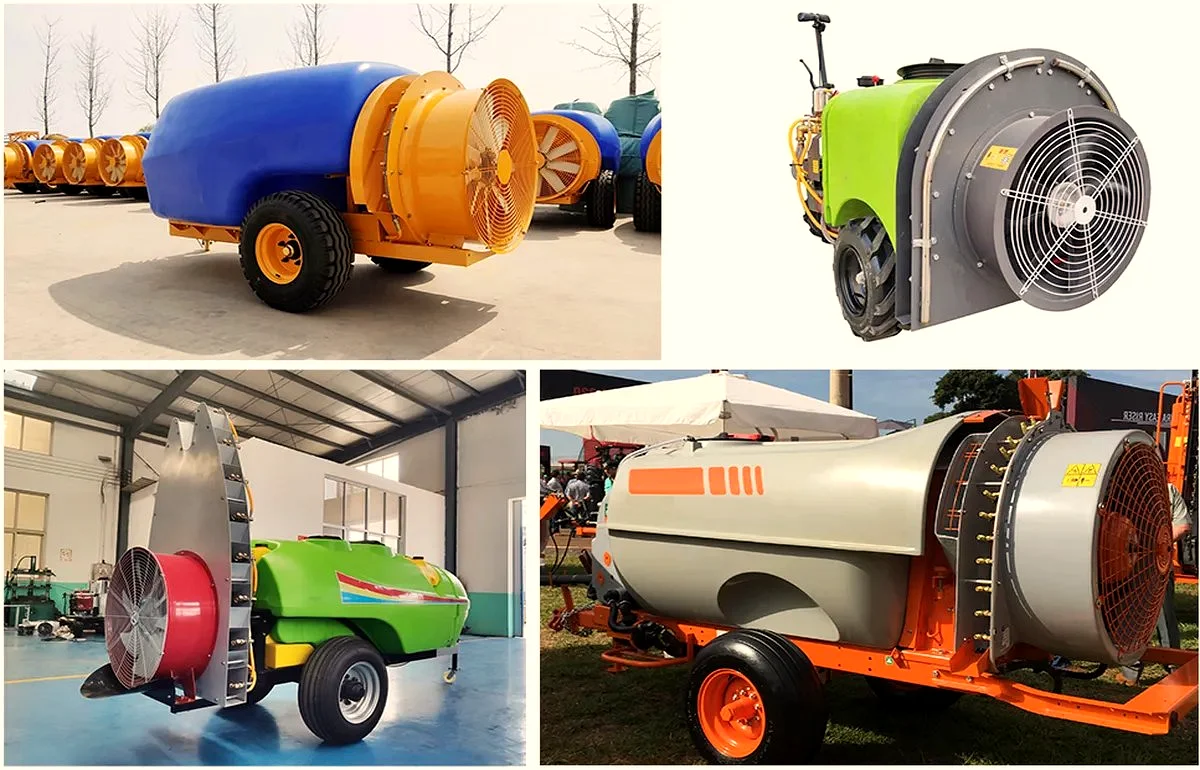

Orchard Spraying

Apple, pear, peach, and grape growers across Korea use PTO-driven air-blast sprayers for fungicide and pesticide applications during the growing season. These sprayers typically use centrifugal pumps requiring 2,000-3,000 RPM shaft input. The D-7A (5.82:1) pairs with smaller 600-1,000 litre tank sprayers on compact tractors, while the D-7B (4.36:1) handles larger 1,500+ litre units where more pump torque is needed at a slightly lower speed.

Broadacre Crop Protection

Field crop sprayers for rice paddies, vegetable plots, and soybean fields use boom-style spray systems powered by diaphragm or centrifugal pumps. The D-7B is the more common choice here, as broadacre sprayers tend to use larger pumps at moderate speeds (2,000-2,400 RPM) that need the higher torque capacity of the 84 Nm rating.

Greenhouse Spray Systems

Heated greenhouse operations in Jeju-do and southern coastal regions use smaller tractor-mounted sprayers for climate-controlled crop protection. The compact dimensions and light weight of the D-7 gearbox suit these confined working environments where space around the tractor is limited.

Kvalitetscertifieringar

The D-7 series is manufactured under ISO 9001:2015-certified quality management. Every gearbox undergoes individual bench testing for gear noise, output speed accuracy, and seal integrity before dispatch. CE safety marking is applied where required. Korea Ever-Power provides a 12-month warranty covering manufacturing defects in materials and workmanship, with spare seals and bearings stocked for immediate shipment.

Relaterade produkter

A properly sized PTO driveshaft connecting tractor to sprayer gearbox is part of safe operation. Korea Ever-Power supplies matched Kraftuttagsaxelaggregat with the guard coverage and torque ratings needed for sprayer service. For additional jordbruksväxellåda models — mowers, tillers, balers, and more — visit our complete product line.
