Premium PTO Gearbox Solutions for Agriculture, Truck & Industrial Applications
ISO 500 compliant power take-off gearboxes engineered for 540/1000 RPM PTO systems. Trusted by OEM partners across 50+ countries. Korea-based precision manufacturing with global delivery.
Years Experience
Countries Served
Units Delivered
OEM Partners
Latest PTO Gearbox Products
High-performance aftermarket replacement PTO gearboxes — fully interchangeable with OEM specifications
PTO Gearbox Structure & Working Principle
Understanding the core engineering behind every power take-off gearbox we manufacture
A PTO gearbox (Power Take-Off gearbox) is a precision mechanical transmission device that transfers rotational power from a prime mover — such as a tractor engine, truck transmission, or stationary motor — to auxiliary equipment through a standardized splined shaft. It performs speed conversion, directional change (typically 90°), and torque multiplication.
Every gearbox uses precision gear trains — spur, helical, spiral bevel, worm, and planetary — selected per load, speed, and environment. Our PTO inputs comply with ISO 500: Type 1 (540 RPM, 6-spline, Ø35mm) and Type 2/3 (1000 RPM, 21-spline).
Key Components of Our PTO Gearbox Design
Input Shaft
Material: 20CrMnTi · Hardness: HRC 58-62 · Spline: 6/21-spline · Standard: ISO 500
Gear Train
Types: Spur/Helical/Bevel/Worm/Planetary · Process: CNC+carburizing+grinding · Precision: DIN 6-7
Output Shaft
Connection: SAE/Spline/Keyed · Speed: 540~3,000 RPM · Torque: Up to 5,000 N·m
Housing
Material: Cast/Ductile iron/Aluminum · Protection: IP54~IP65 · Finish: Powder coated
Bearings
Types: Ball/Tapered roller · Life: 20,000+ hours · Lubrication: Grease/oil bath
Seals & Safety
Seals: NBR/FKM · Temp: -30~+120°C · Safety: Shear bolt/Slip clutch
PTO Gearbox Technical Specifications
| Parameter | Range | Notes |
|---|---|---|
| Input Speed | 540 / 1000 RPM | ISO 500 |
| Output Speed | 540~3,000 RPM | Application-dependent |
| Power | 10~200 HP | Continuous duty |
| Torque | 50~5,000 N·m | At rated input |
| Ratio | 1:1~1:100 | Custom available |
| Gear Type | Spur/Helical/Bevel/Worm/Planetary | Per application |
| Housing | Cast Iron / Ductile / Aluminum | Per load |
| Input Shaft | 6-spline Ø35 / 21-spline | ISO 500 |
| Sealing | IP54~IP65 | NBR/FKM |
| Mounting | SAE/2-Bolt/4-Bolt/Custom | OEM configs |
PTO Gearbox Applications Across Industries
Our power take-off gearboxes serve diverse sectors worldwide
Agriculture & Farming
Rotary tillers, cutters, post hole diggers, fertilizer spreaders, feed mixers, hay rakes, manure pumps. 540/1000 RPM, 15-80 HP.

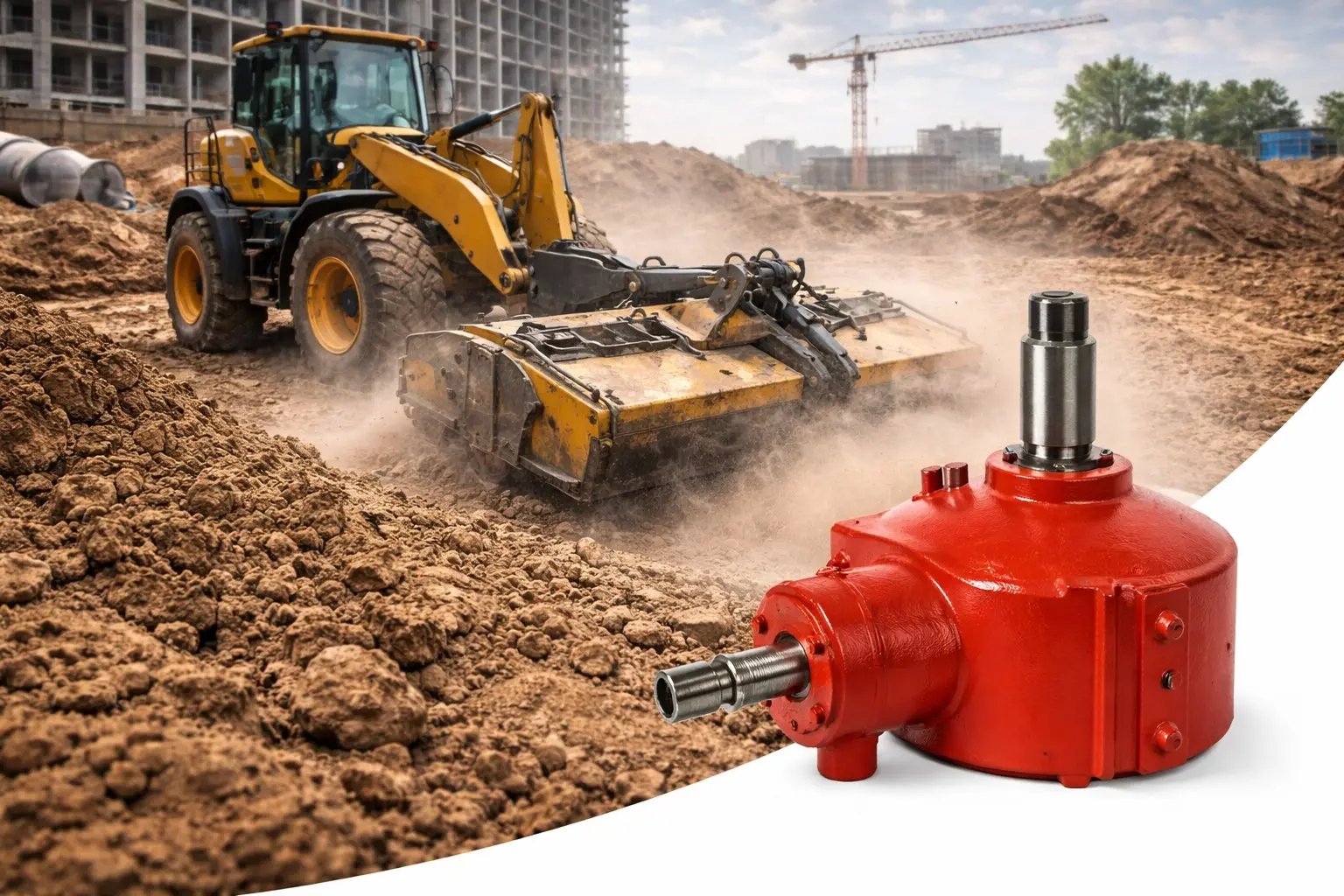

Construction & Infrastructure
Concrete pumps, dewatering, compaction, hydraulic cranes. Up to 5,000 N·m torque, IP65 protection.

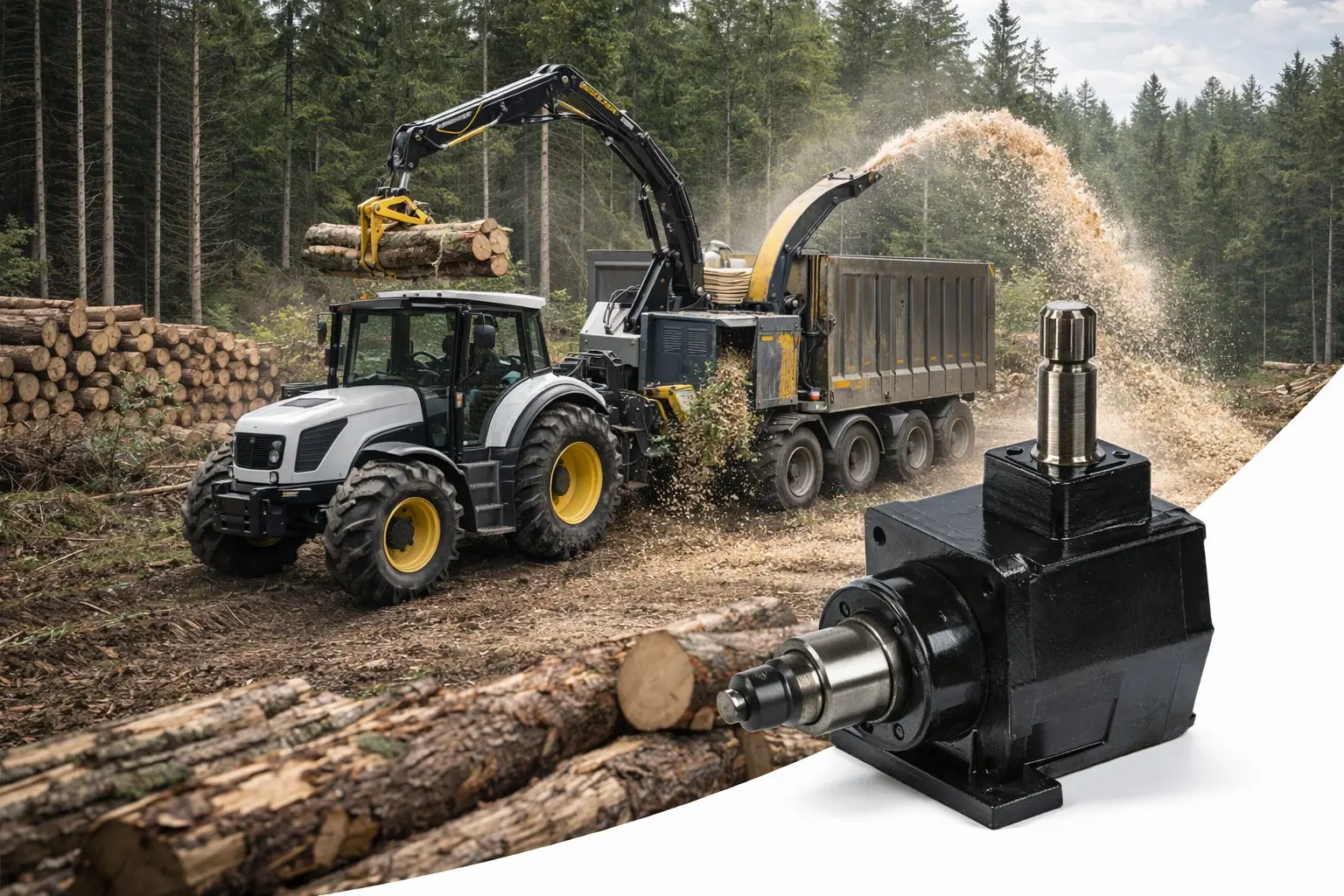

Forestry & Wood Processing
Wood chippers, stump grinders, pruners, log splitters. Up to 3,000 RPM with overload protection.

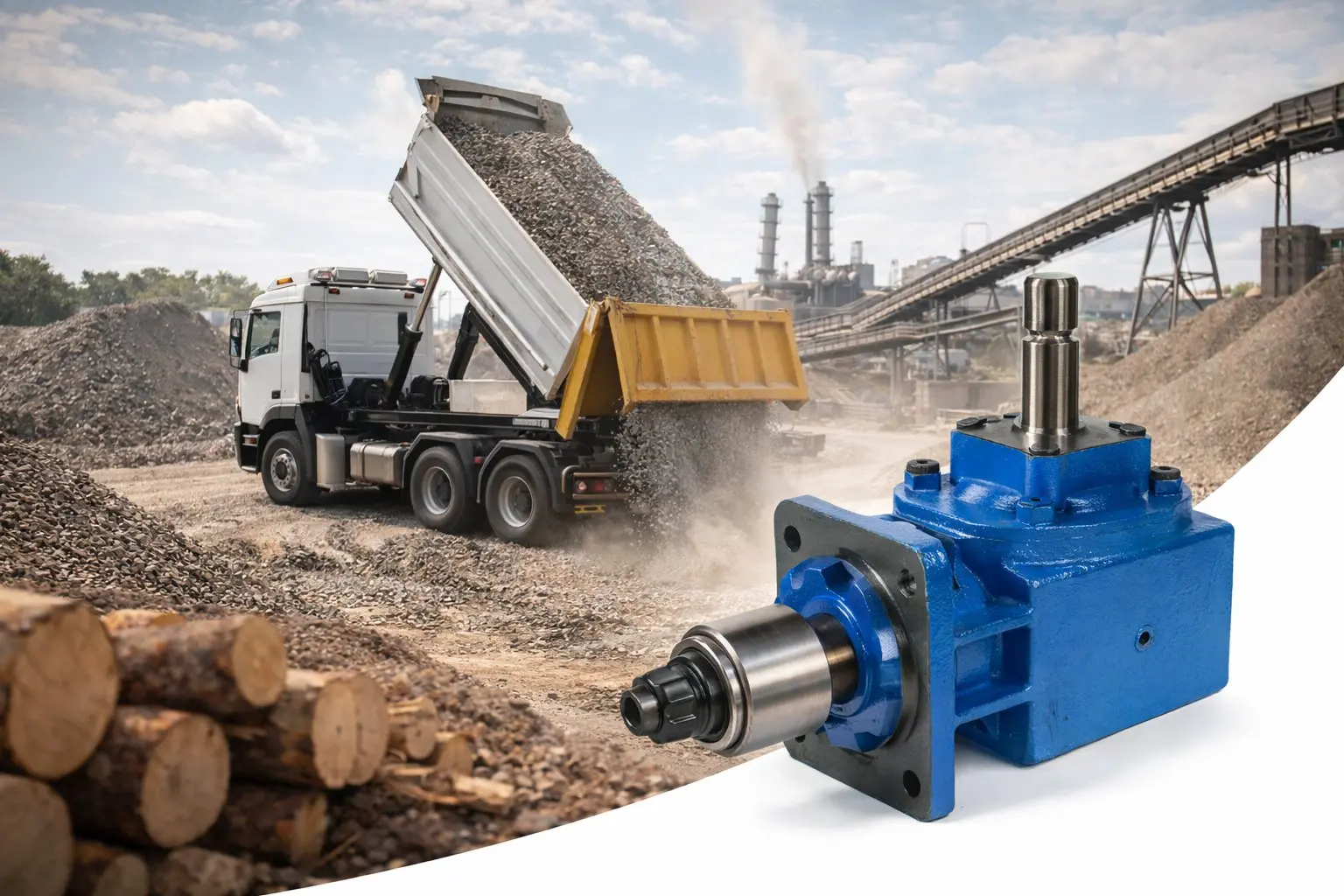

Truck & Commercial Vehicles
Split shaft, sandwich, side-mount PTOs. Fire trucks, garbage compactors, vacuum trucks, aerial platforms.

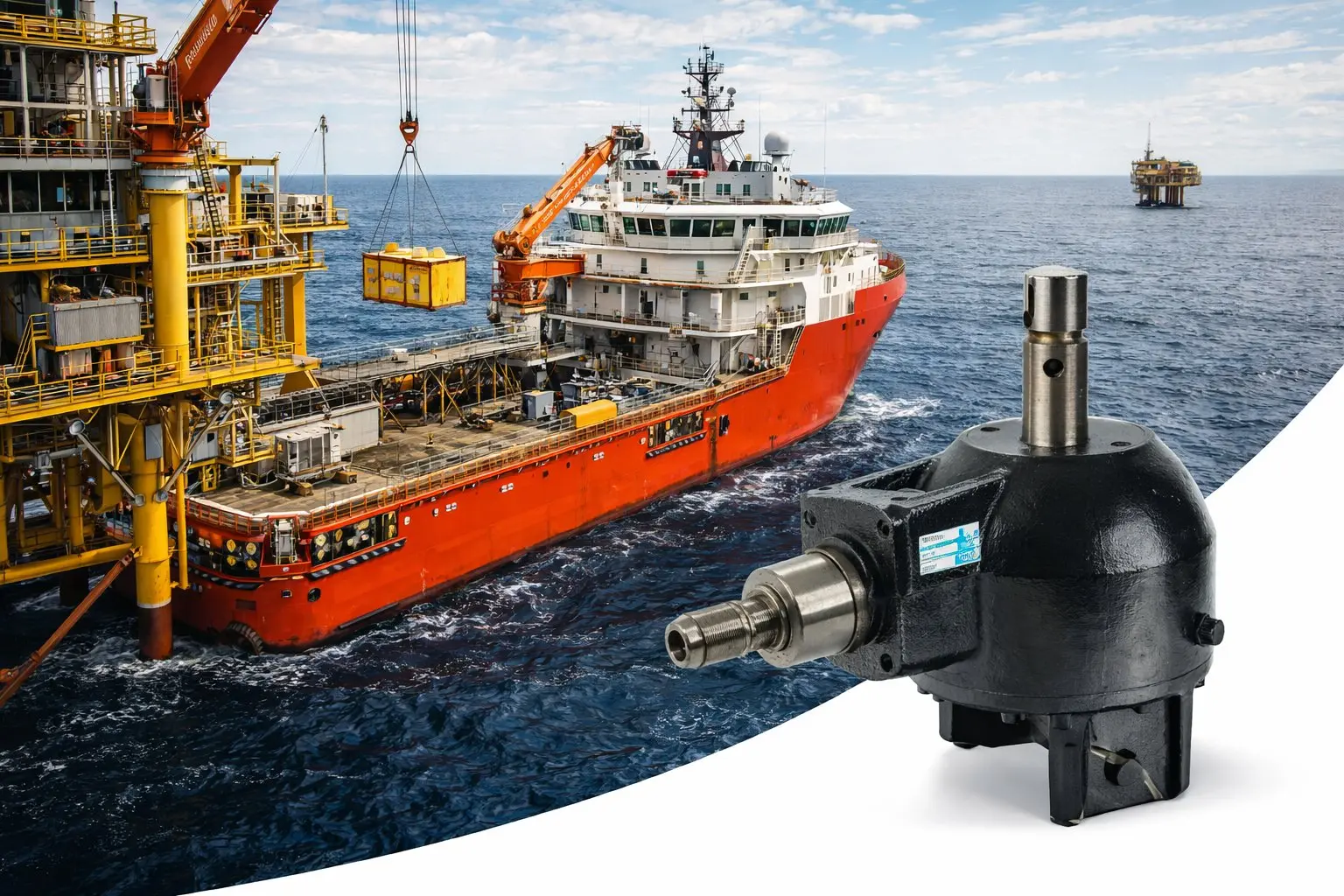

Marine & Offshore
Vessel fire pumps, deck cranes, anchor winches, generators. Stainless hardware, FKM seals, anti-corrosion.

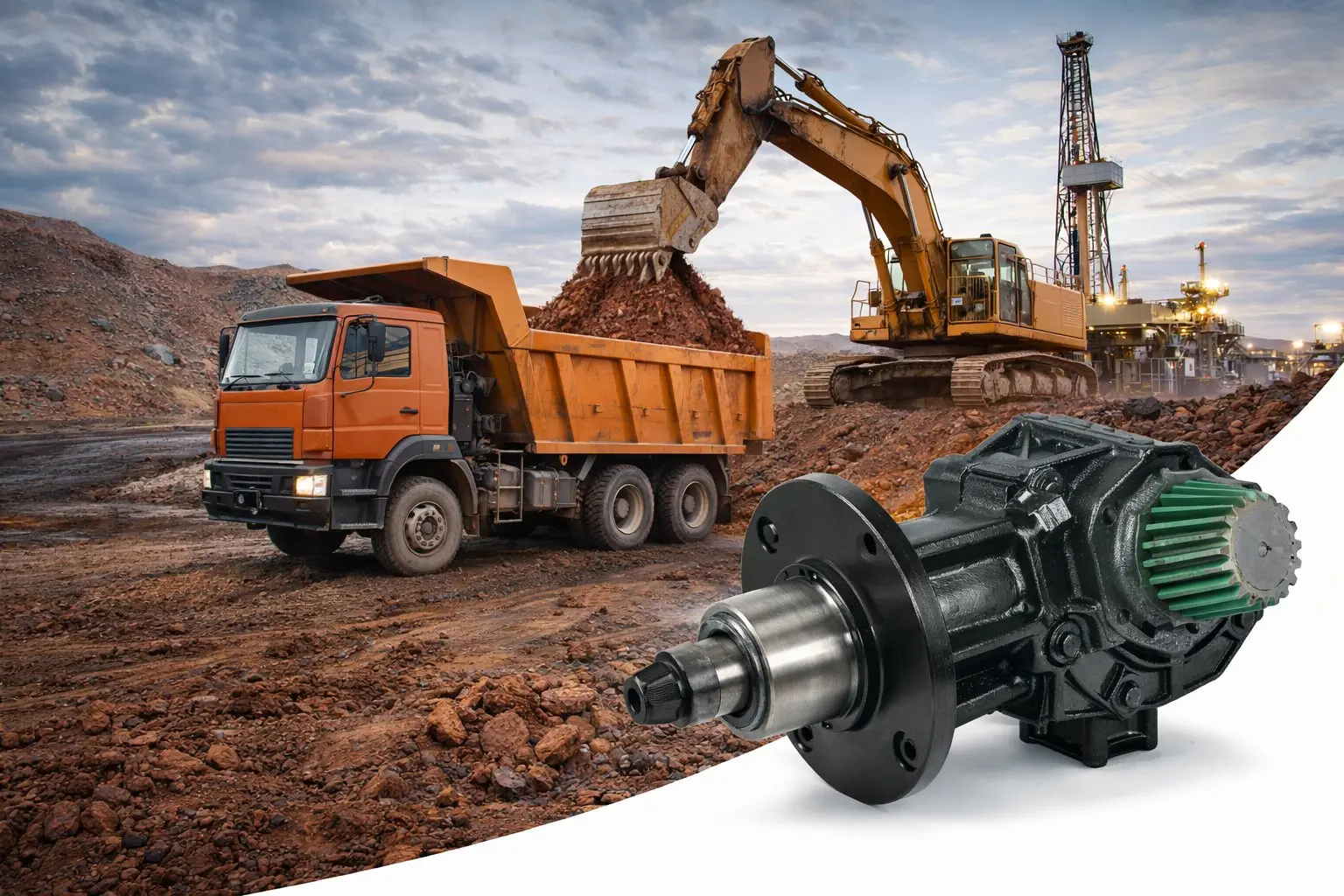

Mining & Oil/Gas
Rock crushers, mud pumps, conveyors, pump jacks. Max torque, ductile iron. -30°C to +120°C, 24/7.
Why Choose Korea PTO Gearbox
Korea PTO Gearbox Co., Ltd — professional manufacturer in Ansan-si, South Korea. 15+ years, 12,000 m² factory, ISO 9001 certified. 500+ OEM partners across 50+ countries.

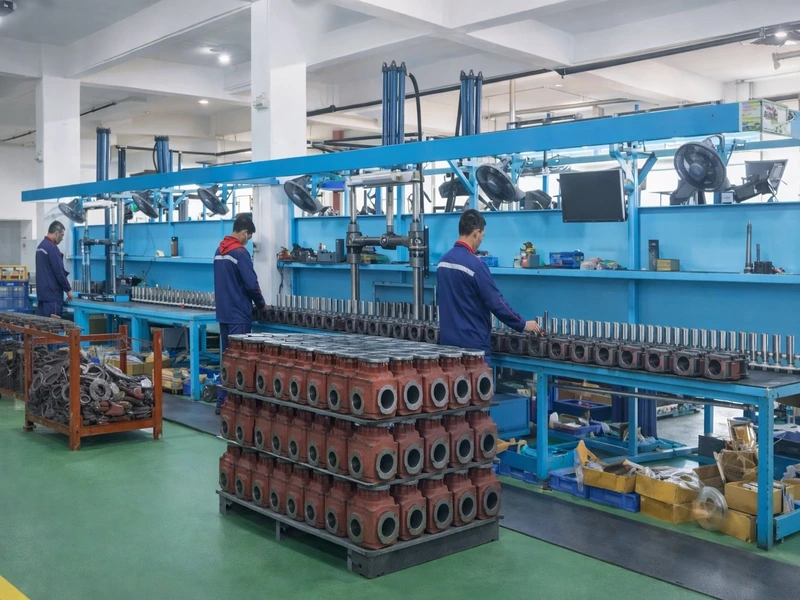

In-House Manufacturing
60+ CNC machines, carburizing furnaces, gear grinding. Complete vertical integration.

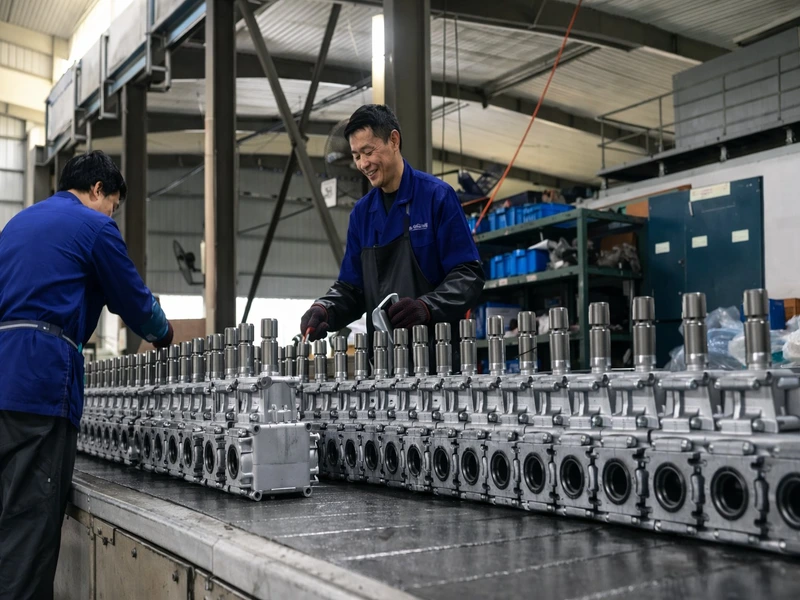

Rigorous Quality Control
ISO 9001:2015. CMM, noise, load, seal testing. Defect rate <0.3%.
OEM/ODM Custom
25+ engineers. Custom ratios, shafts, housings, branding. Prototype: 15 days.
Global Logistics
Near Incheon/Busan ports. Full export docs. Lead time: 15-30 days.
Competitive Pricing
Factory-direct. 20-35% savings vs. European. Same quality standards.
After-Sales Support
EN/KR support. CAD files, manuals. 12-month warranty.
PTO Gearbox Selection Guide
Four steps to the right PTO gearbox — or contact our engineers
Application
Agriculture / Truck / Industrial / Marine
Input Speed
540 or 1000 RPM
Power Range
10-50 / 50-100 / 100-200 HP
Gearbox Type
Increaser / Reducer / Right-Angle
What Our Global Clients Say
"Switched to Korea PTO Gearbox for our tiller production. Gear quality outstanding — field failure rate dropped 60%. Optimized ratio for Korean rice paddy conditions."
Procurement Director, DaeHan Agricultural 🇰🇷
"Excellent quality, competitive pricing. Truck PTO units for fire trucks 3 years. Delivery on schedule. Highly recommended for Japanese OEM standards."
Chief Engineer, Osaka Fire Equipment 🇯🇵
"Custom 1:4.2 ratio speed increaser for palm oil equipment. Prototypes in 20 days, production in 45 days. 18 months running flawlessly in tropical conditions."
Managing Director, Mekong Agri-Tech 🇻🇳
Frequently Asked Questions
Expert answers about PTO gearbox selection, specs, and ordering
